Solar Connector
Place of Origin: Zhejiang, China (Mainland) Brand Name: suntree/OEM Model Number: PV-1*2.5 mm2 Type: Clock Number of Conductors: one Application: solar energy system cross section: 1*2.5 mm2 Colours: black&red
Single core PV Cable
Description
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: suntree/OEM
- Model Number: PV-1*2.5 mm2
- Type: Clock
- Number of Conductors: one
- Application: solar energy system
- cross section: 1*2.5 mm2
- Colours: black&red
- Life time: 25 years
- Smallest permissible bending radius: 5*D
- Temperature range: -40℃-+90℃
- Wire: class5,tinned
- Rated current: 70A
- Rated voltage: DC1800V
Application
- Dual Wall insulation , Electron beam cross-linked
- Excellent resistance to U.V.,water.ozone, fluids; salt.General Weathering
- Excellent resistance to abrasion
- Halogen free,flame retardant,low toxicity
- Excellent flexibility and strip performance
- High current carrying capacity
- TUV and UL approved

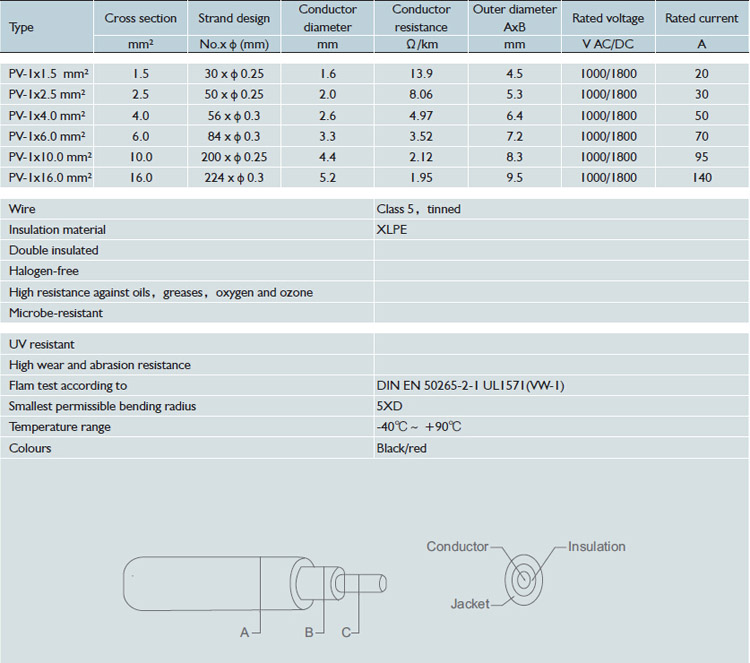

Specifications
